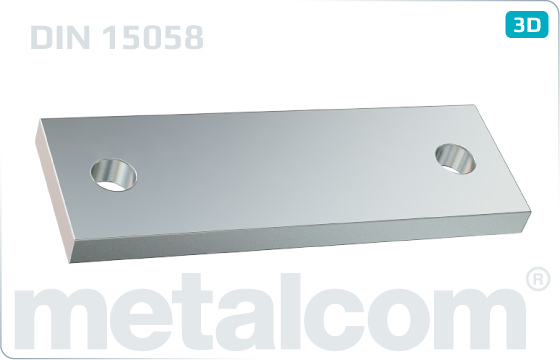

Clamps axle holders - DIN 15058
You are here
Home
»
Fixings
»
Clamps
»
axle holders
Catalogue
Screws
Nuts
Washers
Wood screws – Nails
Pins, split pins and keys
Rivets
Fixings
Railway superstructure
Standard
ČSN
ISO
DIN
PN/M
Other
Shape
15058
Basic materials
Steel
St
Basic coatings
None
-

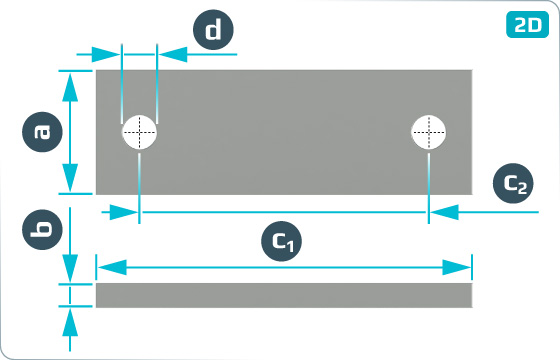

Dimensions (see 2D picture)
a
b
c1
c2
d
For axle
20
5
60
36
9
50
25
6
80
50
11
50
30
8
100
70
13
25
40
10
140
100
17
25
50
12
190
140
21
10
