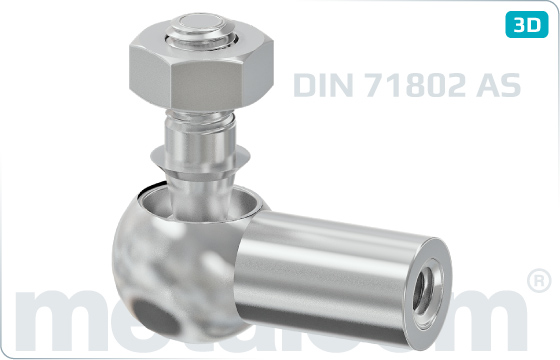

Miscellaneous screws angle joints - DIN 71802 AS

Standard

ČSN	ISO	DIN	PN/M	Other	Shape
		71802			AS


Steel
St


Zinc
Vz


d	d1	d3	a	e	l2	l3	Packing
M 5	8	8	22	10,2	10,2	9	25
M 6	10	10	25	11,5	12,5	11	25
M 8	13	13	30	14	16,5	13	25
M 10	16	16	35	15,5	20	16	10
M 12	16	16	35	15,5	20	16	10
M 14x1,5	19	22	45	21,5	28	20	10
M 16	19	22	45	21,5	28	20	10

Data about packing are only informative and can be slightly different in reality.
